@@@Product outline

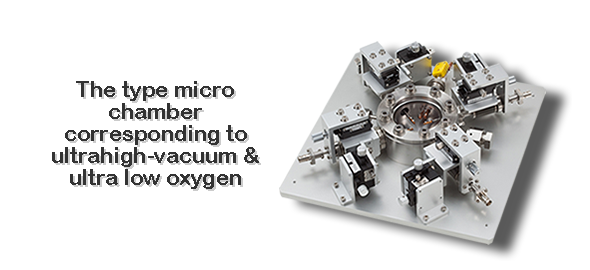

@They are an ultrahigh vacuum and a micro chamber made from stainless steel corresponding to ultra low oxygen environment. 4 sets of measurement probes can be positioned with high precision by 3 axis(X,Y,Z) stage, and incorporate a Peltier devuce and a micro heater, and heating cooling of a sample is possible for them.


@@@Feature and Function

@@EIt is a type micro chamber corresponding to the ultrahigh vacuumi‚P‚˜‚P‚O‚d-‚U‚o‚jof "leak zero."
@@EPlay an active part in various devices or sensor development.
@@EIn combination with a PID type oxygen-partial-pressure controller(product made from STLab), an @@@experiment in the ultra low oxygen ‚P-‚P‚O‚d-30‚‚”‚‚n2 atmosphere is also possible.
@@EPositioning of a measurement probe is possible with high precision by 3 axis stage(x,Y,Z).
@@EHeating cooling of a sample is possible.


@@@Specifications and Performance


Sample stand temperature max800Ži500Žj

Heater 200W thermocoax heater
Thermoregulator Program thermoregulator
(19patterns/19steps)

Attainment vacuum in a chamber Level of 10E-6 Pa(at however,the time of TMP direct connection)
Leak rate Below 1~10E-10Paand, cube meter/sec
Exhaust 35with dry cleaning pump L/sec turbo molecular drag pump
Measurement probe Tungsteni20micro of tips mR, 4 setsj

Probe migration length }12mm of X-axis, }7mm of Y-axesA}7mm of Z-axes
